A new exhaust can look mean, sound better, and drop some unwanted weight - but only if the connection between the bike and the muffler is right. To fit a motorcycle link pipe properly, you need more than a clamp and a few minutes in the garage. You need the correct diameter, the correct bend, clean mating surfaces, and patience before you tighten anything down.
A link pipe is a simple part with a big job. It bridges your header or mid-pipe to the slip-on muffler, setting the angle, clearance, and seal of the whole system. Get it right and your upgrade sits tight, clears the swingarm, and gives your bike the aggressive note you came for. Get it wrong and you can end up with exhaust leaks, rattles, melted plastics, or a can pointing in a direction that just looks off.
Start With the Right Motorcycle Link Pipe
The first rule is non-negotiable: buy for your bike, not just for the diameter printed on a listing. A pipe that is close in diameter can still fail on bend angle, insertion depth, mounting position, or clearance around the rearset and swingarm.
Model-specific link pipes are built around the exact route your exhaust needs to take. That matters most on modern sportbikes and naked bikes, where catalytic converters, oxygen sensors, compact bodywork, and tightly packaged suspension components leave little room for guesswork. A universal pipe can work on a custom setup, but it often requires measuring, cutting, bending, or fabrication. It is not the quick bolt-on answer many riders expect.
Before ordering or installing, confirm your motorcycle’s year, model, and engine version. Check whether the pipe is designed for the stock headers, an aftermarket header, or a specific muffler inlet size. A link pipe that fits a 51 mm muffler inlet does not automatically fit every 51 mm exhaust system. The joint style and pipe route still matter.
What You Need Before You Start
Do the job with a cold motorcycle. Exhaust parts stay hot long after the engine is off, and rushing into the install can turn a simple upgrade into a burned-knuckle mistake.
Set out the new link pipe, muffler, supplied clamps, springs if included, mounting hardware, and any gasket or exhaust sealant recommended for your setup. You will usually need basic sockets, hex keys, a ratchet, a rubber mallet, a clean rag, and penetrating oil if the old hardware has seen plenty of weather.
If your system uses springs, a spring puller makes life easier and keeps the process controlled. Do not stretch springs with random screwdrivers unless you enjoy slipping tools, scratched finishes, and unnecessary frustration.
Inspect the Parts Before Removal
Look over the new pipe before touching the stock exhaust. Check for shipping damage, rough edges, dents around the slip joints, or a crushed flange. Slide the pipe lightly onto the muffler inlet and the header-side connection by hand to understand how it indexes.
You are looking for a natural fit, not a fight. A light push and gentle twist are normal. Hammering a pipe into place is a warning sign that the joint is dirty, distorted, mismatched, or simply the wrong size.
Remove the Existing Mid-Pipe or Muffler
Support the muffler before removing its mounting bolt. On some bikes, the stock can is heavier than it looks, and letting it hang from the header joint can strain or damage parts you are trying to keep.
Loosen the clamp at the existing exhaust connection, then remove the muffler hanger bolt. If the pipe is stuck from heat cycles and corrosion, use penetrating oil around the joint and work the can with a slow twisting motion. Avoid prying hard against the header, swingarm, or engine cases.
Once the stock piece is off, inspect the header outlet and any gasket left behind. Carbon buildup, old sealant, or a damaged gasket can stop a new link pipe from seating fully. Wipe the mating surfaces clean with a rag. If the gasket is cracked, flattened beyond recognition, or stuck in fragments, replace it before moving forward.

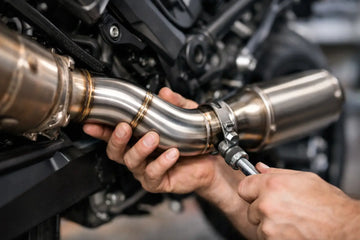

How to Fit a Motorcycle Link Pipe Step by Step
Start by loosely assembling the entire system. Slide the link pipe onto the header-side outlet first, then connect the muffler to the other end. Install the muffler hanger bolt, spacer, and washer, but leave everything loose enough to move.
This is where a clean install is won or lost. Do not tighten the header clamp first and hope the muffler finds its way into position. With all connections loose, you can rotate the link pipe, set the muffler angle, and make sure the mounting tab lines up without forcing it.
Check the clearance around the swingarm, rear axle, rearset, shock, brake line, turn signals, and lower fairing. Look from the side and behind the bike. A muffler can appear straight from one angle while sitting noticeably crooked from another.
Once the can is centered and the link pipe follows a natural route, tighten the hanger hardware first. Then tighten the clamps gradually. If your manufacturer provides a torque specification, use it. If not, aim for firm and even clamping pressure rather than crushing the pipe. Overtightening can deform thin stainless or titanium tubing, making future removal harder and causing a worse seal instead of a better one.
If your setup uses exhaust springs, install them after the joints are fully seated. The spring should pull the joint together without pulling the system out of alignment.
Should You Use Exhaust Sealant?
It depends on the joint. A properly sized, well-made slip joint may seal without it, especially when it uses a snug fit and quality clamp. But a thin layer of high-temperature exhaust sealant can help on a slightly loose connection or a reused joint that has seen years of heat cycles.
Do not treat sealant as a cure for an incorrect pipe size or a damaged connection. If there is a large gap, the pipe rocks on the outlet, or the clamp bottoms out before the joint seals, stop and address the fitment issue. More sealant will not turn a bad match into a reliable exhaust system.
Check for Leaks Before You Ride
With the bike outside or in a well-ventilated area, start the engine and let it idle. Keep your hands clear of hot pipes and moving parts. Listen closely around each joint for a sharp ticking or puffing sound, which can point to an exhaust leak.
You can also hold a small strip of paper near the connection without touching the exhaust. If it flickers from pulses escaping the joint, you likely have a leak. Shut the bike down, let it cool, and check that the pipe is fully seated and the clamp is positioned over the correct part of the joint.
A new exhaust may smell slightly different during its first heat cycle as oils and manufacturing residue burn off. That is normal. Smoke from a leaking joint, contact with plastic, or a pipe touching a brake line is not. Take the time to inspect everything again after the first ride, then recheck clamp tension once the system has cooled completely.
Common Fitment Mistakes That Ruin the Result
The most common mistake is tightening every clamp before the muffler hanger is aligned. That locks the system into a bad angle and puts stress on the mounting bracket. Another is reusing a damaged gasket because it looks mostly fine. Exhaust sealing surfaces do not need to look dramatic to cause a leak.
Riders also sometimes chase a deeper sound by removing every insert or DB killer without thinking about the trade-off. More volume can be fun, but it can also bring drone, unwanted attention, and a ride that gets tiring fast. Build the exhaust around how you actually ride, not just how it sounds for ten seconds in the garage.
Finally, do not ignore clearance because the bike looks fine on the stand. The suspension compresses under riding load. Check that the exhaust has room to move and cannot contact the swingarm, tire, or bodywork when the bike is loaded.
A properly fitted link pipe is the difference between an exhaust that merely bolts on and one that transforms the bike. Take your time with the alignment, let every joint seat naturally, and give the system one more inspection after its first heat cycle. That extra garage time pays you back every time you fire it up.
